Xerox Phaser Setup Instructions for Windows

Driver download locations

• Xerox Phaser 6360
• Xerox Phaser 6700

Setup Instructions

• From the links above download the "PostScript Print Driver for Administrators".

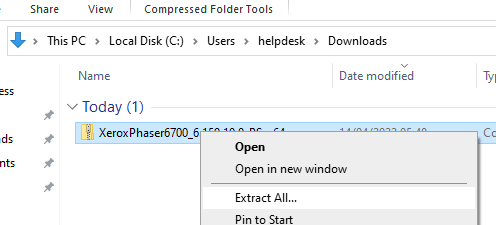

• Navigate to the location you downloaded the driver to, right-click on the "XeroxPhaser...zip" and then "Extract All..."




• Copy the location for use later.




• In the "Type here to search" box type "printers", then select "Printers & Scanners"
• Select 'Add a printer or scanner'

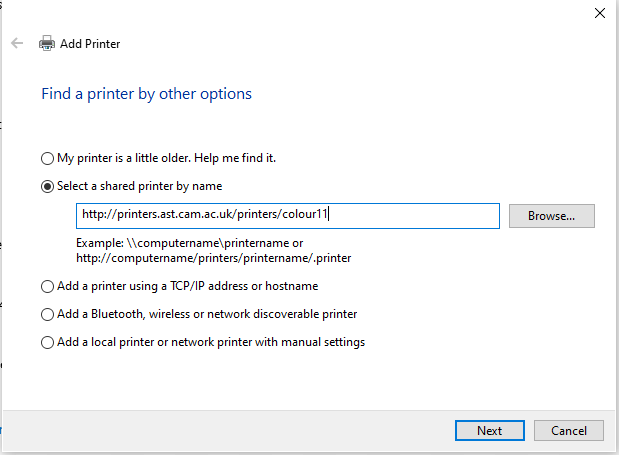

• Select 'The printer that I want isn't listed', this will take a moment to appear, then select the option 'Select a shared printer by name'
• In the text box type in http://printers.ast.cam.ac.uk/printers/printername.
  (eg. http://printers.ast.cam.ac.uk/printers/colour11 for colour11)




  see https://local.ast.cam.ac.uk/computing/resources/printers for a list of printer names.

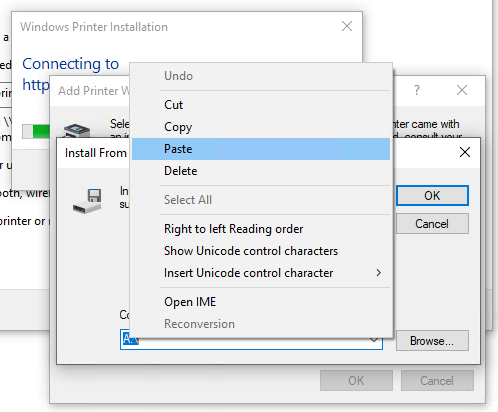

• Click on Next, then "Have Disk...". Replace "A:\" with the path you copied earlier

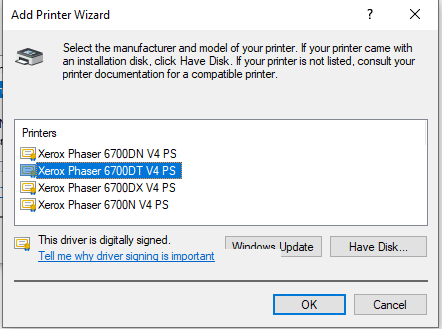

• Click on OK then select the DT variant of the options presented




• Click 'OK', then 'Next'
• You can print a test page if required and click on Finish
